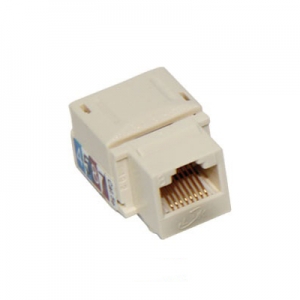

LINK CAT 5E RJ45 Modular JACK
Zoom Print บอกต่อเพื่อน

LINK CAT 5E RJ45 Modular JACK

LINK CAT 5E RJ45 Modular JACK
Product code : US-1005
Weight : 0 g.
Stock : Ready to ship
ส่งฟรี : กรุงเทพฯ และ ปริมณฑล (รหัส 02)
ราคา 80.00 บาท
ลดเหลือ 76.00 บาท
Quantity :

LINK CAT 5E RJ45 Modular JACK (ตัวเมีย) (มีฝาครอบกันฝุ่น)


LINK CAT 5E RJ45 Modular JACK Standard Specification


Standard                                              :ANSI/TIA-568-C.2 Category 5e and ISO/IEC-1181 and EN-50173-1

Product Type                                     :RJ45 Jack with cover cap

Wiring Pattern                                   :T568B/T568A Universal Color Patten

Housing Material                              :High Impact  Flame Retardent Plastic

Housing Flammability Rating      :UL94V-0 ABS

Jack Contact                                       :50 micro –inches Phosphor Bronze over Nickel Plated and Gold Plating

Termination Block                            :90 Degree 110 IDC , UL94V-0 Polycarbonate

Terminal material                             :Phosphor Bronze with Nickel Plating 100 micro-inches

Durability                                             :800 matiing cycles (Modular Jack)

                                                                  200 termination cycles (110 IDC Block)

Tool Free (Tooless Type)               :180 Degree 110 IDC , UL94V-0 ABS

Shield Cover (Sheld Type)             :50-60 micro-inches Nickels Plating over Phosphor Bronze

Wire Size                                                :22AWG – 26AWG solid cables

Approvals                                            :UL List E196947 and Intertek Channels Test



Part No.

Description

Type

Tool

Color

US - 1005

 CAT 5E RJ45 Modular Jack

UNSHIELD

110

Ivory

US - 1005TF

CAT 5E RJ45 Modular Jack

UNSHIELD

Tool Free

Blue

US - 1013

CAT 5E RJ45 Modular Jack

Half - Shiled

Half - Shiled

White with shield

US – 1013TF

CAT 5E RJ45 Modular Jack

Full-Shield

Tool Free

White with shield
