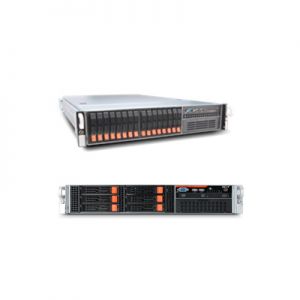

Model

AT.R5300.507

CPU Types

Intelฎ Xeonฎ DP  Quad-Core E5620 (2.4G,5.86 GT/s QPI)

CPU max.support

2

CPU Cache

12MB L3 Cache

Memory

4GB (2x2GB)

Memory max. support

ECC DDR3 1333MHz Registered

Up to 192 GB Max (18 DIMM  slot)

Graphics

Embedded graphics controller with 16 MB video memory

PCI Slots

6 x PCI Expressฎ 2.0 x8 slots

1 x Flex I/O  (PC I-E 2.0 x8)

(Total#,#, xxbit/xxxMHz)

2 x PC I-X 64/133MHZ and 1 x PCI Expressฎ 2.0 x8

(Optional)

Harddisk

1x1T B3.5" Enterprise SATA  7200 RPM

Std.HDD Controller

Integrated six-port SATA  S/WRA ID 0,1,5*,10

H/W RAID Controller

Integrated SAS  H/W RAID  with cache memory  512MB,

RAID level 0/1/10/5/50/6/60

Max. # Internal Disks supports

6 x 3.5" Hot Plug bays for SATA/SAS HDD

Optical device

DVDRW (Slim-type)

Onboard Gigabit Ethernet

Yes, Quad

Redundant Power Supply

1+1 hot-swappable, redundant power supply (optional)

Form Factor

2U rack-optimized

Sliding Rail Kit

Free Bundled!!

OS Support

Windows Server 2008 (x86/E M 64T )

Windows Server 2008 R2 (E M 64T )

Windows Server 2003 Enterprise Edition

Red Hat Enterprise Linux 5.4 (x86/EM64T)

SuS E  Linux Enterprise Server 11 (x86/E M 64T)

VMWare ESX 4 / VMWare ESXi 4 Installable

VMWare ESXi 4 Embedded

Warranty

3 Year warranty  Part & Labor, 5x8,

Onsite Service NBD Thailand

Onsite Service NBD  Thailand
